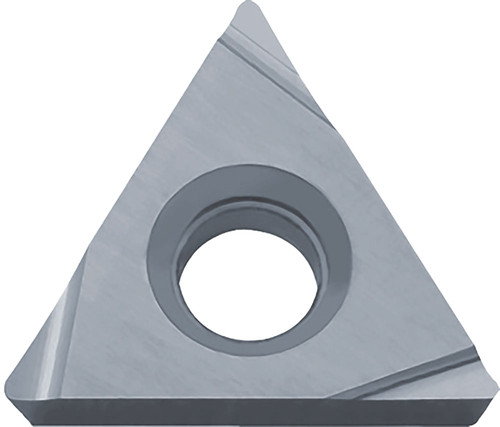

Kyocera TPGH 21505L TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR06870
$18.36
Kyocera TPGH 21505L TN620 Grade Uncoated Cermet, 11 Degree, Triangle, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
60 degrees
Thickness
3/32 Inch
Style
TPGH
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
21505
Old Material Number
8862751
ANSI Part Number
TPGH21505LTN620
ISO Part Number
TPGH110202L
Rake
Positive
Material Group / Grade
TN620
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Thickness (Metric)
2.38
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
