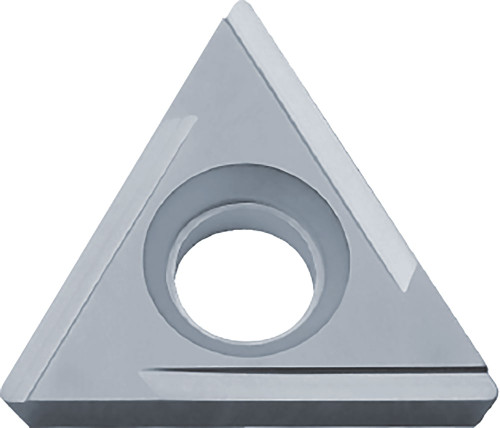

Kyocera TPGH 2205LH TN60 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ02470
$19.29
Kyocera TPGH 2205LH TN60 Grade Uncoated Cermet, 11 Degree, Triangle, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TPGH
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
2205
Old Material Number
8807988
ANSI Part Number
TPGH2205LHTN60
ISO Part Number
TPGH110302L-H
Rake
Positive
Material Group / Grade
TN60
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Thickness (Metric)
3.18
Chipbreaker
H
Cutting Range
Medium
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
Kyocera TPGH 2205LH TN60 Grade Uncoated Cermet, Indexable Turning Insert
$19.29
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
