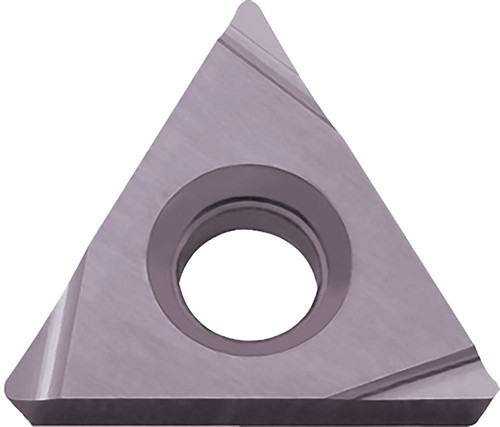

Kyocera Turning Insert TPGH322ML PR1725: TLM40271

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM40271
$40.96

Kyocera Turning Insert TPGH322ML PR1725, manufacturer part number TLM40271.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8866424; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 322; Hand Direction: Left; Insert Style: TPGH; ANSI Designation: TPGH322MLPR1725; ISO Designation: TPGH160308ML; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: PR1725; Workpiece Material: Steel, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPGH322MLPR1725
Insert Style
TPGH
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
322
Old Material Number
8866424
Insert Grade
PR1725
Workpiece Material
Steel, Stainless Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Coating Process
PVD
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
TPGH160308ML
IC Size (Fractional)
3/8
Pack quantity
10
