Kyocera Turning Insert TPGR2205LA PV730: TLP00396

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00396
$27.34

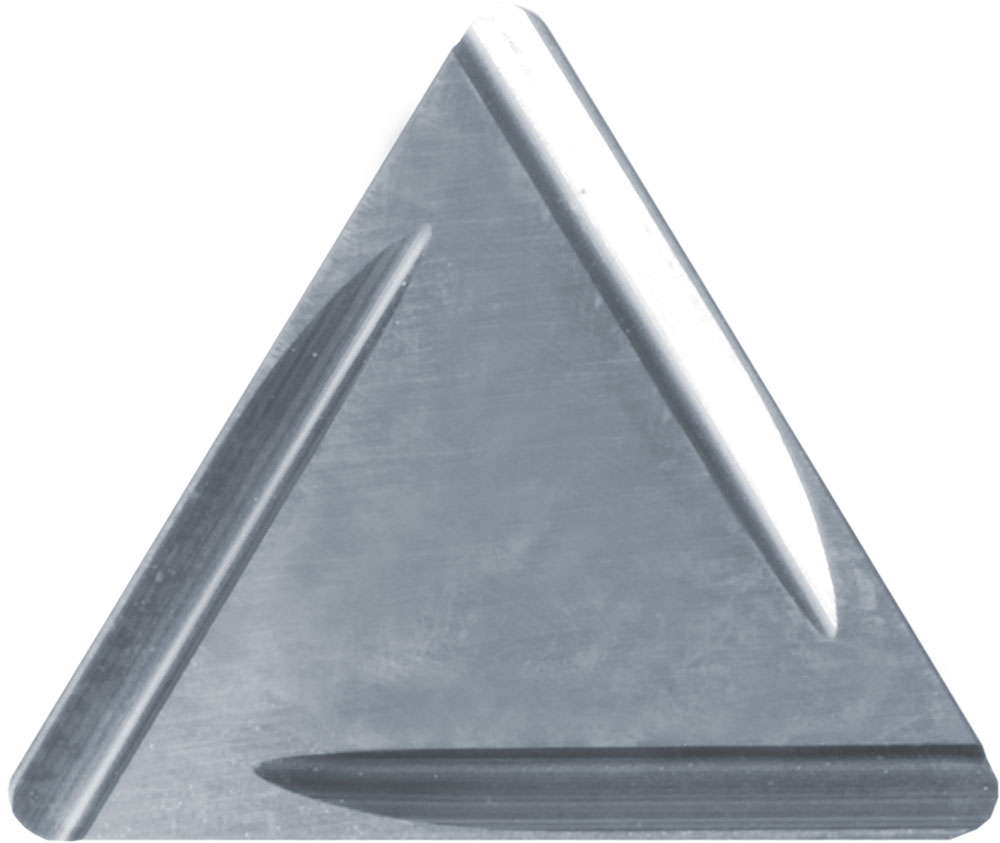

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing cutting range, clamp insert holding, left hand. Cermet, TiAlN/TiN (PVD) coating. Manufacturer part number TLP00396.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Cermet
Coating/Finish
TiAlN/TiN
IC Size (Metric)
6.35
Included Angle
60
Corner Radius (Decimal)
0.0080
Insert Style
TPGR
Insert Thickness (Fractional)
1/8
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
2205
Insert Thickness (Metric)
3.18
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Insert Grade
PV730
Chip Breaker Type
A
Cutting Range
Finishing
Usage Classification
Continuous to Heavy Interruption
ISO Designation
TPGR110302L-A
Workpiece Material
Steel
ANSI Designation
TPGR2205LAPV730
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
Coating Process
PVD
