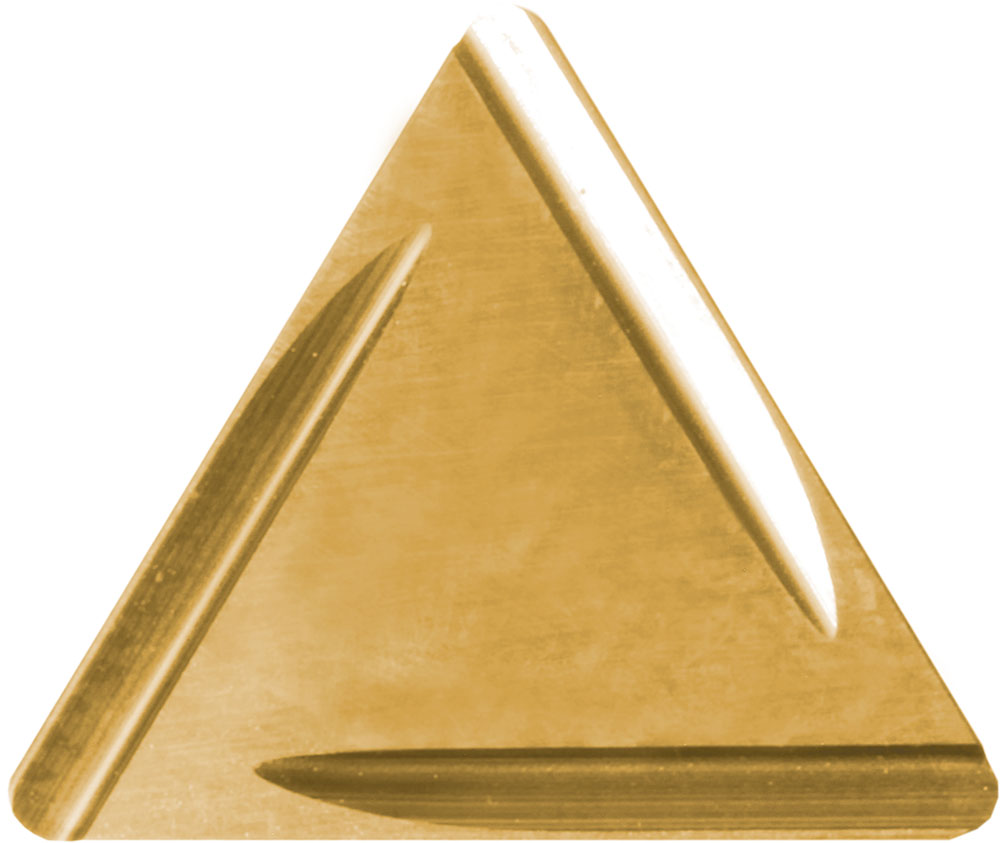

Kyocera TPGR 321LB PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00402
$32.99
Kyocera TPGR 321LB PV730 Grade PVD Cermet, 11 Degree, Triangle, Positive Rake Angle, Left-Hand Turning Insert for Heavy Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TPGR
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Clamp
Size
321
Old Material Number
8866162
ANSI Part Number
TPGR321LBPV730
ISO Part Number
TPGR160304L-B
Rake
Positive
Material Group / Grade
PV730
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
3.18
Chipbreaker
B
Cutting Range
Finishing-Medium
Usage Classification
Heavy Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
