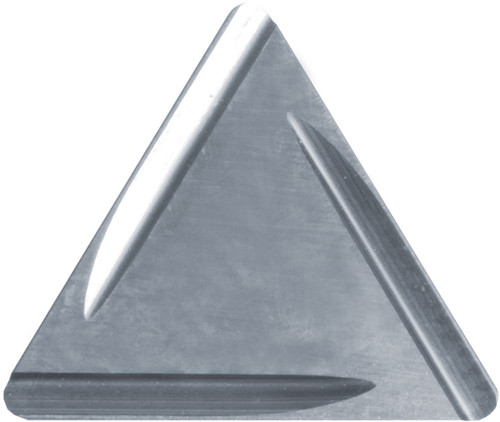

Kyocera Turning Insert TPGR321RC TN610: TSS06971

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS06971
$26.19

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, triangle shape, positive rake, 3 cutting edges, medium cutting range, clamp insert holding, right hand. Cermet, uncoated. Manufacturer part number TSS06971.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPGR321RCTN610
Insert Style
TPGR
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
321
Insert Grade
TN610
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
IC Size (Fractional)
3/8
Cutting Range
Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
C
ISO Designation
TPGR160304R-C
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
