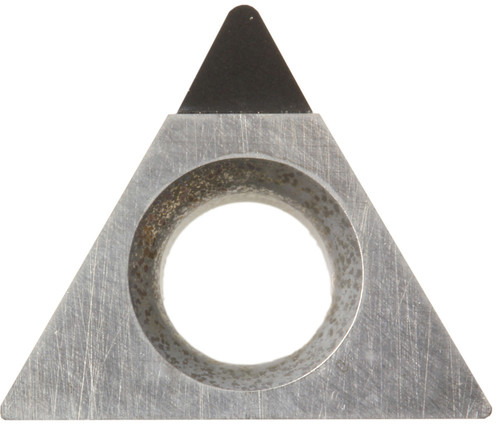

Kyocera Turning Insert TPMH322NE KPD001: TBR05238

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR05238
$220.79

Kyocera Turning Insert TPMH322NE KPD001, manufacturer part number TBR05238.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8830957; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 322; Hand Direction: Neutral; Insert Style: TPMH; ANSI Designation: TPMH322NEKPD001; ISO Designation: TPMH160308NE; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: KPD001; Workpiece Material: Non-Ferrous, High-Temp Alloy; Insert Shape: Triangle.

Material: PCD. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPMH322NEKPD001
Insert Style
TPMH
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
322
Old Material Number
8830957
Insert Grade
KPD001
Workpiece Material
Non-Ferrous, High-Temp Alloy
Rake
Positive
Insert Thickness (Metric)
3.18
Corner Radius (Metric)
0.80
Number of Cutting Edges
1
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
TPMH160308NE
IC Size (Fractional)
3/8
Kyocera Turning Insert TPMH322NE KPD001: TBR05238
$220.79
