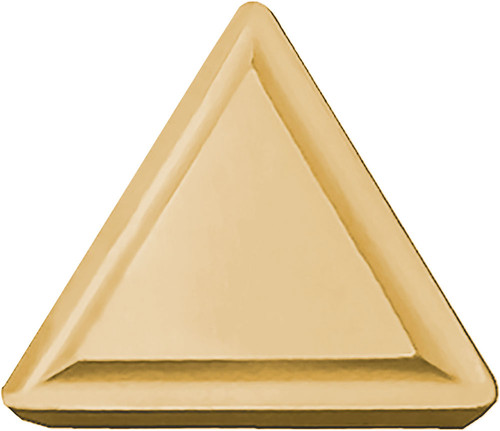

Kyocera Turning Insert TPMR221G PV730: TLP00439

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00439
$11.87

Kyocera Turning Insert TPMR221G PV730, manufacturer part number TLP00439.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Clamp; Old Material Number: 8866173; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium; Usage Classification: Continuous to Heavy Interruption; Insert Size: 221; Hand Direction: Neutral; Insert Style: TPMR; ANSI Designation: TPMR221GPV730; Chip Breaker Type: G; ISO Designation: TPMR110304G; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: PV730; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiAlN/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiAlN/TiN
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMR221GPV730
Insert Style
TPMR
Insert Thickness (Metric)
3.18
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
221
Old Material Number
8866173
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
PV730
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TPMR110304G
Cutting Range
Medium
Usage Classification
Continuous to Heavy Interruption
IC Size (Fractional)
1/4
Coating Process
PVD
Chip Breaker Type
G
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
Kyocera Turning Insert TPMR221G PV730: TLP00439
$11.87
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
