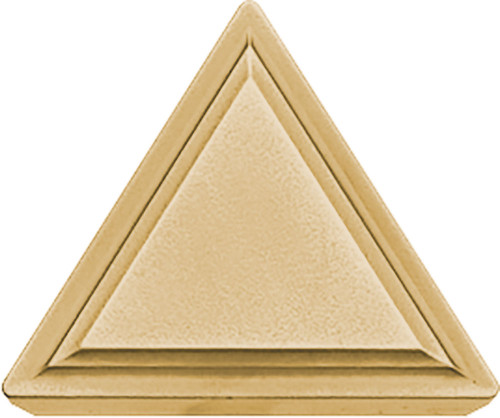

Kyocera TPMR 222 CA525 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC06701
$15.28
Kyocera TPMR 222 CA525 Grade CVD Carbide, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TPMR
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Clamp
Size
222
Old Material Number
8841212
ANSI Part Number
TPMR222CA525
ISO Part Number
TPMR110308
Rake
Positive
Material Group / Grade
CA525
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Thickness (Metric)
3.18
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
