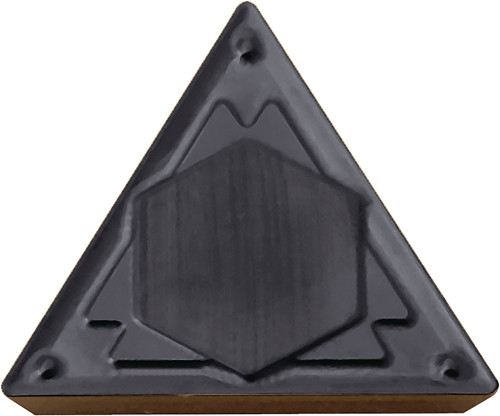

Kyocera Turning Insert TPMR222HQ CA115P: TML00427

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00427
$14.81

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing-medium cutting range, clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TML00427.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPMR222HQCA115P
Insert Style
TPMR
Insert Thickness (Metric)
3.18
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
222
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
CA115P
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TPMR110308HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
