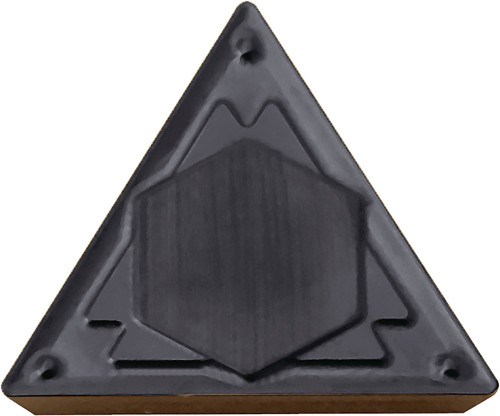

Kyocera Turning Insert TPMR321HQ CA125P: TMK00429

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00429
$21.00

Kyocera Turning Insert TPMR321HQ CA125P, manufacturer part number TMK00429.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Clamp; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 321; Hand Direction: Neutral; Insert Style: TPMR; ANSI Designation: TPMR321HQCA125P; Chip Breaker Type: HQ; ISO Designation: TPMR160304HQ; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CA125P; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMR321HQCA125P
Insert Style
TPMR
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
321
Insert Grade
CA125P
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
HQ
ISO Designation
TPMR160304HQ
Pack quantity
10
