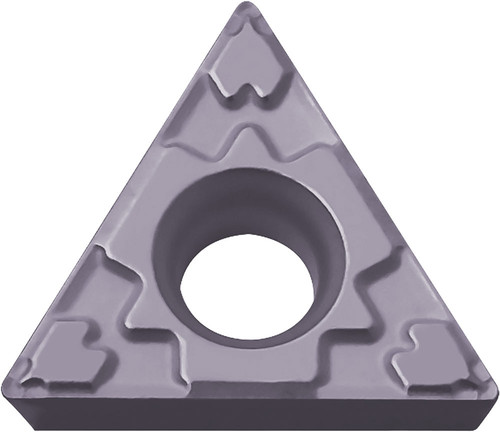

Kyocera Turning Insert TPMT181505GP PR1725: TLM00327

Kyocera Turning Insert TPMT181505GP PR1725, manufacturer part number TLM00327.

Specifications: IC Size: 7/32 in (5.56 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8863576; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 181505; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT181505GPPR1725; Chip Breaker Type: GP; ISO Designation: TPMT090202GP; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: PR1725; Workpiece Material: Steel, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.
