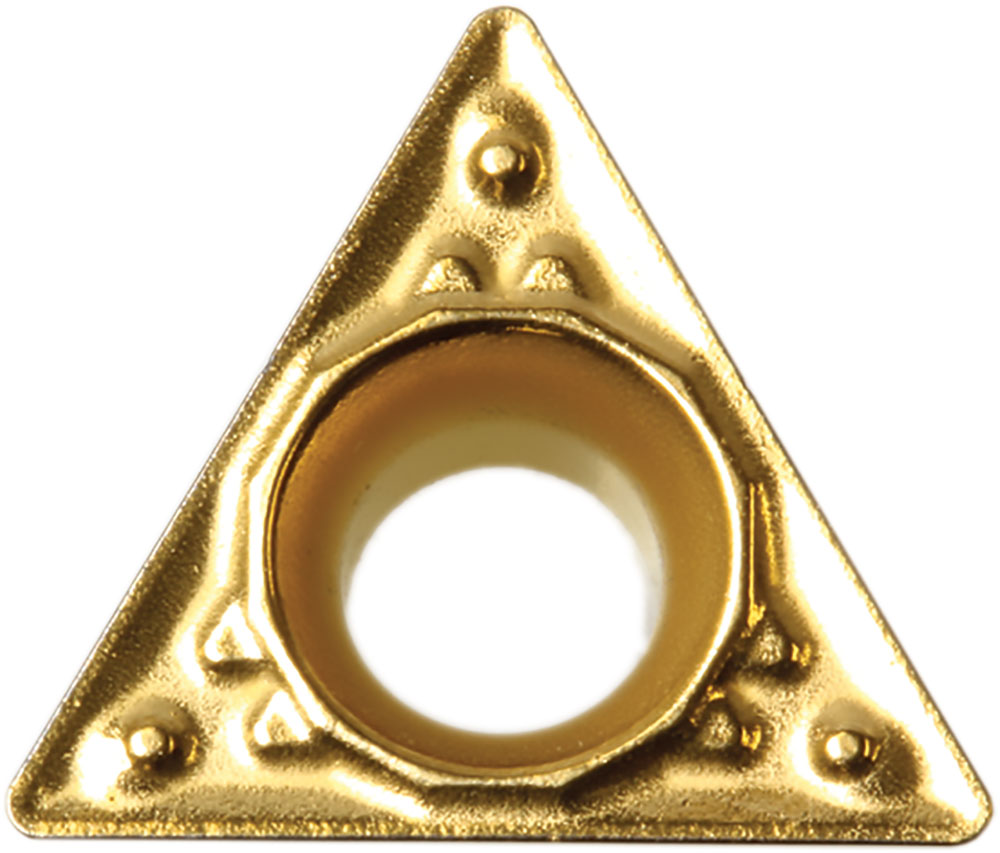

Kyocera Turning Insert TPMT181505HQ CA515: TAB06850

Kyocera Turning Insert TPMT181505HQ CA515, manufacturer part number TAB06850.

Specifications: IC Size: 7/32 in (5.56 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8841219; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 181505; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT181505HQCA515; Chip Breaker Type: HQ; ISO Designation: TPMT090202HQ; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CA515; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
