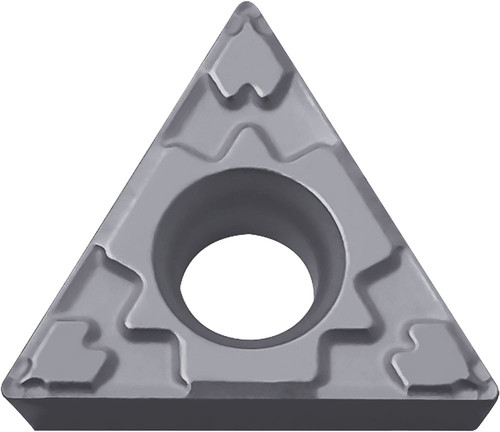

Kyocera Turning Insert TPMT18151GP TN610: TSS07101

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS07101
$9.65

Kyocera Turning Insert TPMT18151GP TN610, manufacturer part number TSS07101.

Specifications: IC Size: 7/32 in (5.56 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8848070; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 18151; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT18151GPTN610; Chip Breaker Type: GP; ISO Designation: TPMT090204GP; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: TN610; Workpiece Material: Steel; Insert Shape: Triangle.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMT18151GPTN610
Insert Style
TPMT
Insert Thickness (Metric)
2.38
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
18151
Old Material Number
8848070
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
TN610
Rake
Positive
IC Size (Metric)
5.56
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TPMT090204GP
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Fractional)
7/32
Chip Breaker Type
GP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
