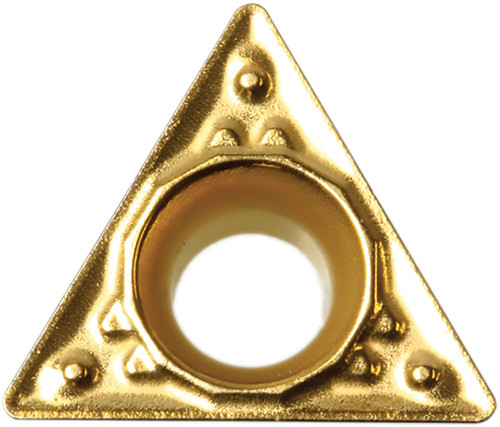

Kyocera TPMT 18151HQ CA6515 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJU06851
$15.28
Kyocera TPMT 18151HQ CA6515 Grade CVD Carbide, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (M) Stainless Steel and (S) Heat-Resistant Alloy

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMT18151HQCA6515
Insert Style
TPMT
Insert Thickness (Metric)
2.38
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
18151
Old Material Number
8824339
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
CA6515
Rake
Positive
IC Size (Metric)
5.56
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Stainless Steel, High-Temp Alloy
ISO Designation
TPMT090204HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
7/32
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera TPMT 18151HQ CA6515 Grade CVD Carbide, Indexable Turning Insert
$15.28
