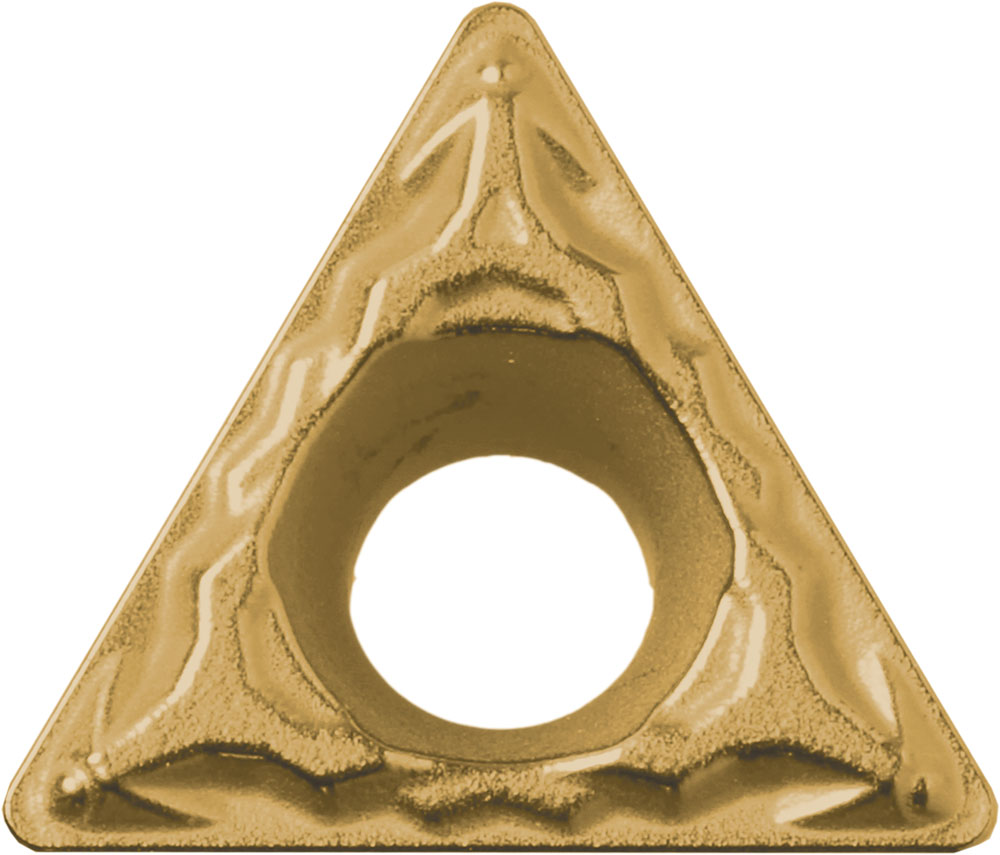

Kyocera TPMT 18151PP PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE07097
$17.78
Kyocera TPMT 18151PP PR1225 Grade PVD Carbide, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
3/32 Inch
Style
TPMT
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
18151
Old Material Number
8841398
ANSI Part Number
TPMT18151PPPR1225
ISO Part Number
TPMT090204PP
Rake
Positive
Material Group / Grade
PR1225
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
2.38
Chipbreaker
PP
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
5.56
Inscribed Circle
7/32 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
