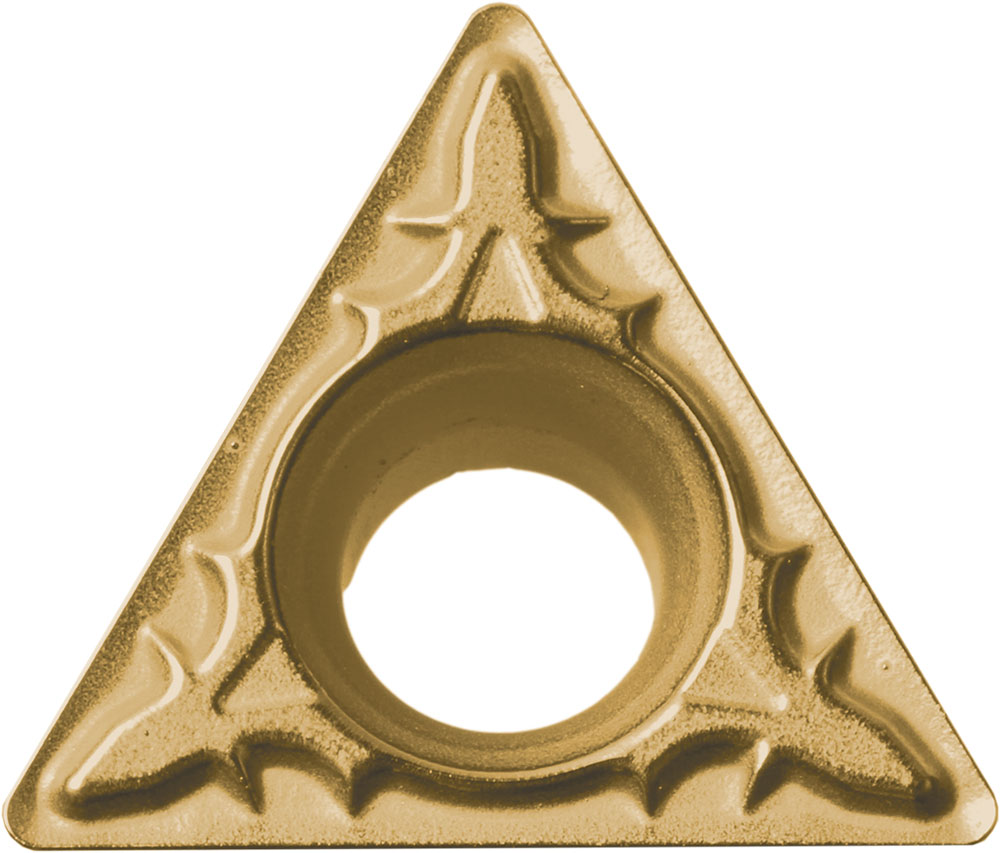

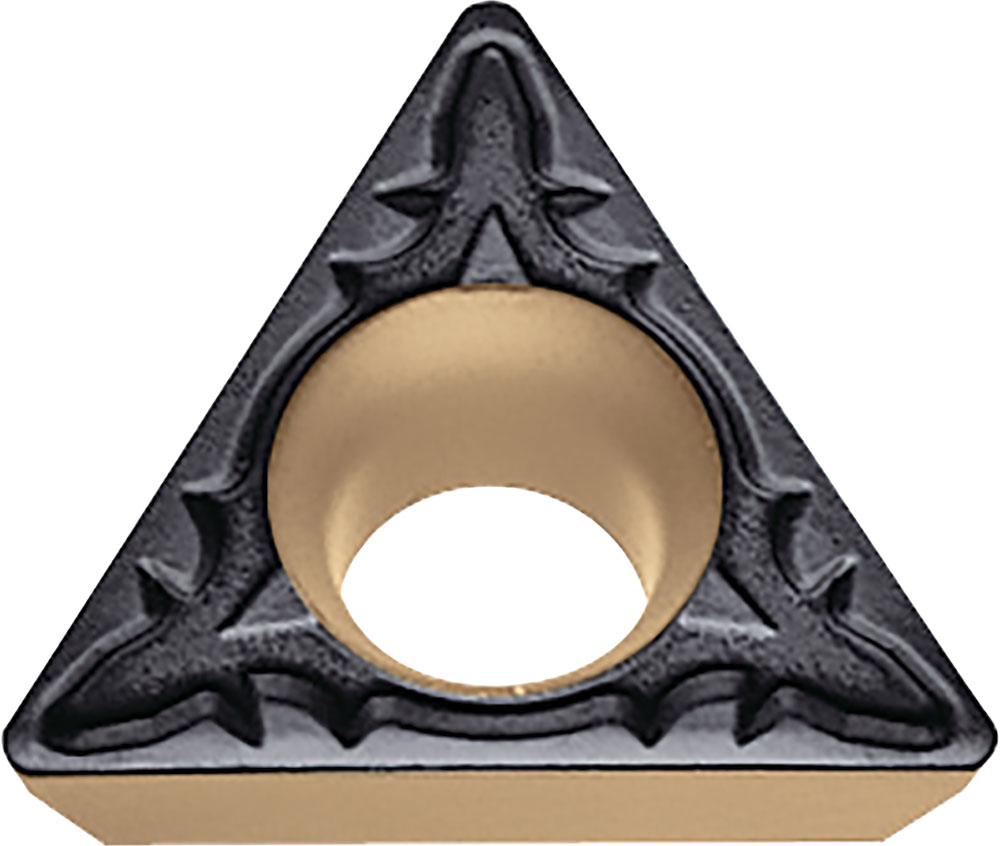

Kyocera TPMT 18151XP CA525 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC06856
$15.28
Kyocera TPMT 18151XP CA525 Grade CVD Carbide, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMT18151XPCA525
Insert Style
TPMT
Insert Thickness (Metric)
2.38
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
18151
Old Material Number
8841232
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
CA525
Rake
Positive
IC Size (Metric)
5.56
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TPMT090204XP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
7/32
Coating Process
CVD
Chip Breaker Type
XP
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
Kyocera TPMT 18151XP CA525 Grade CVD Carbide, Indexable Turning Insert
$15.28
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
