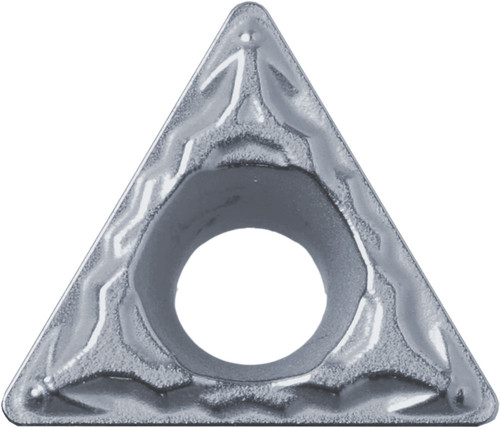

Kyocera Turning Insert TPMT2205PP PR1725: TLM00345

Kyocera Turning Insert TPMT2205PP PR1725, manufacturer part number TLM00345.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8863594; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 2205; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT2205PPPR1725; Chip Breaker Type: PP; ISO Designation: TPMT110302PP; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: PR1725; Workpiece Material: Steel, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.
