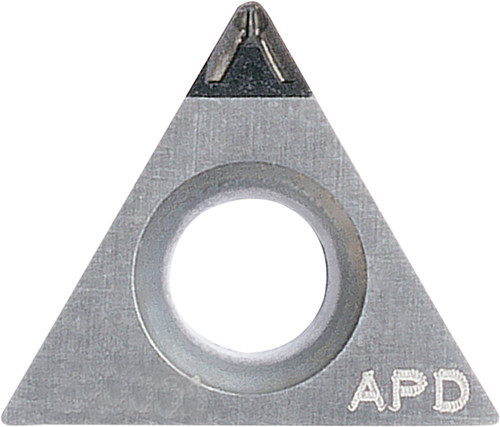

Kyocera TPMT 221APD KPD001 Grade PCD, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR40008
$242.58
Kyocera TPMT221APD KPD001 Grade PCD, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals and (S) Titanium Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TPMT
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
221
Old Material Number
8865307
ANSI Part Number
TPMT221APDKPD001
ISO Part Number
TPMT110304APD
Rake
Positive
Material Group / Grade
KPD001
Corner Radius (Metric)
0.40
Number of Cutting Edges
1
Thickness (Metric)
3.18
Chipbreaker
APD
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Aluminum_Alloy_Machining_Solutions_for_Small_Parts.pdf
