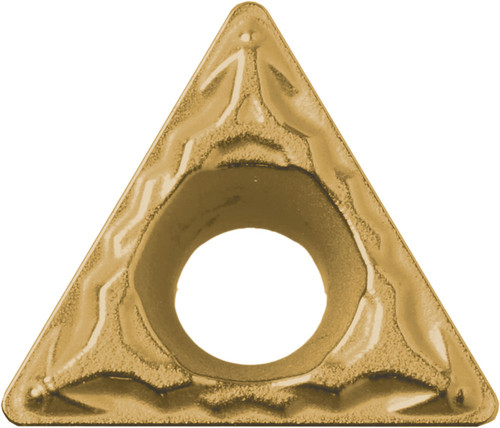

Kyocera Turning Insert TPMT221PP CA025P: TMH00469

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMH00469
$18.89

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMH00469.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMT221PPCA025P
Insert Style
TPMT
Insert Thickness (Metric)
3.18
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
221
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
CA025P
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TPMT110304PP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
PP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA025P_CVD_Coated_Carbide_for_Steel.pdf
