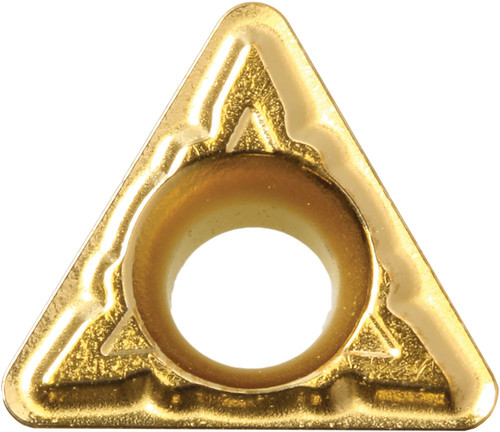

Kyocera Turning Insert TPMT221XQ CA525: TAC06920

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC06920
$15.28

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAC06920.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMT221XQCA525
Insert Style
TPMT
Insert Thickness (Metric)
3.18
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
221
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
CA525
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TPMT110304XQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
XQ
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
Kyocera Turning Insert TPMT221XQ CA525: TAC06920
$15.28
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
