Kyocera Turning Insert TPMT222GP TN610: TSS07106
SKU: KYP-TSS07106

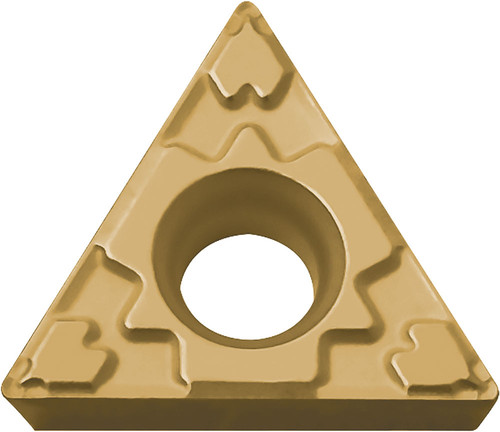

Kyocera Turning Insert TPMT222GP CA525, manufacturer part number TAC06881.
Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8841256; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 222; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT222GPCA525; Chip Breaker Type: GP; ISO Designation: TPMT110308GP; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CA525; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.
Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
