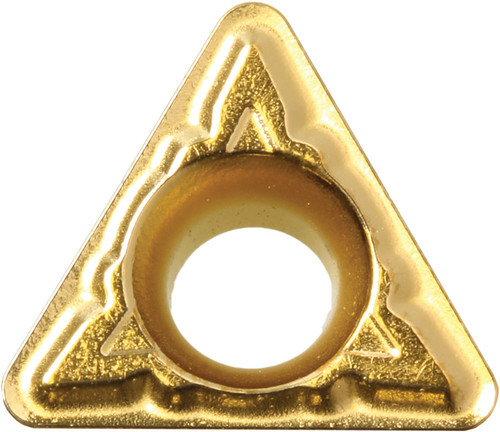

Kyocera Turning Insert TPMT222XQ CA515: TAB06921

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB06921
$15.28

Kyocera Turning Insert TPMT222XQ CA515, manufacturer part number TAB06921.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8841267; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 222; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT222XQCA515; Chip Breaker Type: XQ; ISO Designation: TPMT110308XQ; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CA515; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPMT222XQCA515
Insert Style
TPMT
Insert Thickness (Metric)
3.18
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
222
Old Material Number
8841267
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
CA515
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TPMT110308XQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
XQ
Pack quantity
10
