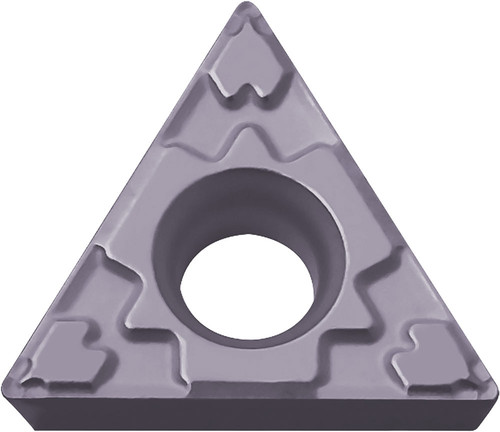

Kyocera Turning Insert TPMT321GP PR930: TKT03651

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT03651
$24.21

Kyocera Turning Insert TPMT321GP PR930, manufacturer part number TKT03651.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8815561; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 321; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT321GPPR930; Chip Breaker Type: GP; ISO Designation: TPMT160304GP; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: PR930; Workpiece Material: Steel, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMT321GPPR930
Insert Style
TPMT
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
321
Old Material Number
8815561
Insert Grade
PR930
Workpiece Material
Steel, Stainless Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Coating Process
PVD
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
GP
ISO Designation
TPMT160304GP
Pack quantity
10
