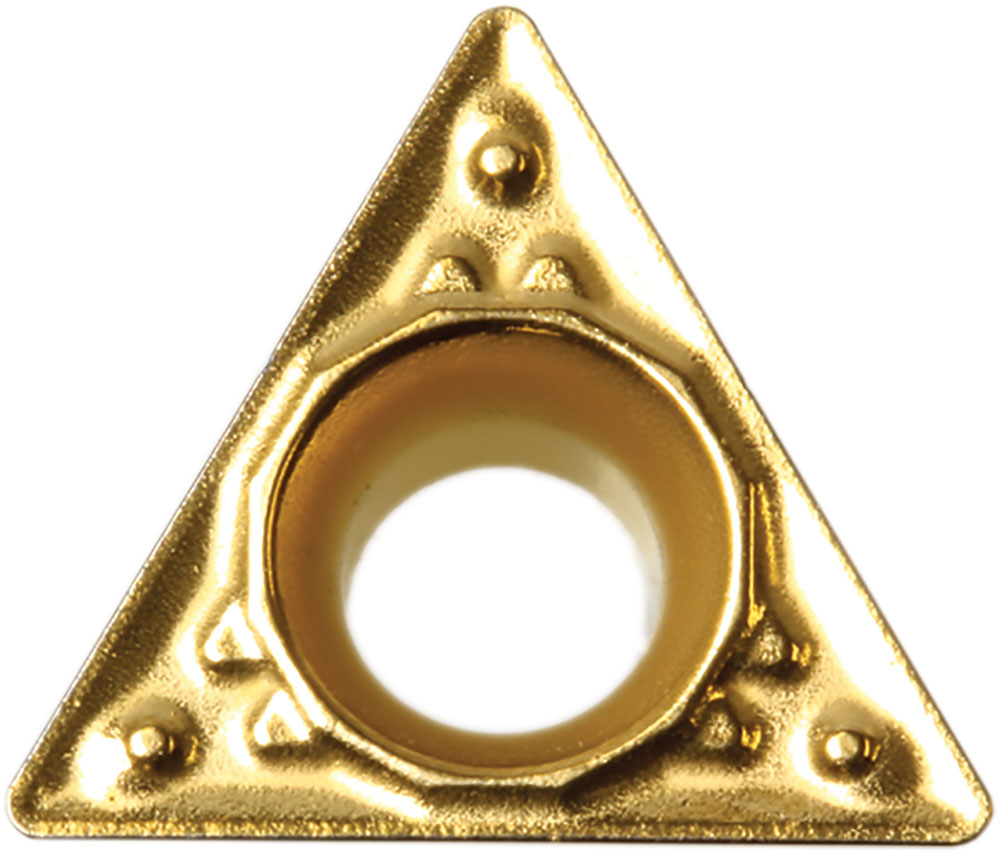

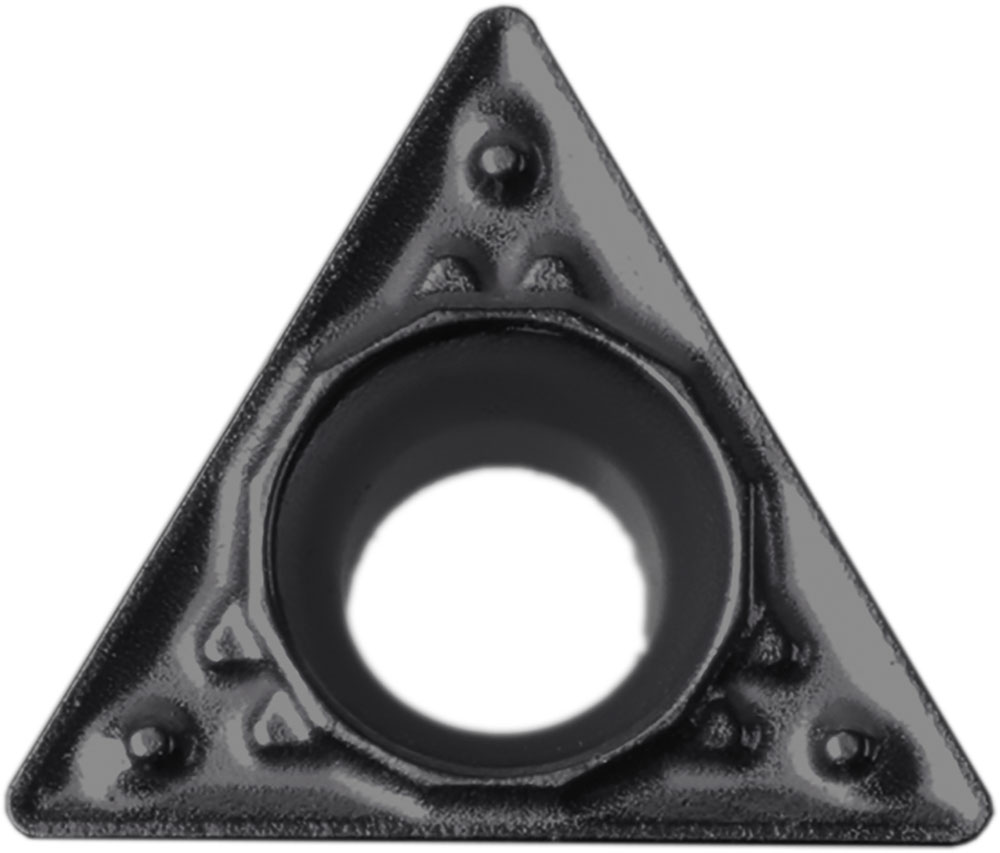

Kyocera Turning Insert TPMT321HQ CA515: TAB06951

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB06951
$17.64

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAB06951.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMT321HQCA515
Insert Style
TPMT
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
321
Insert Grade
CA515
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
HQ
ISO Designation
TPMT160304HQ
Pack quantity
10
