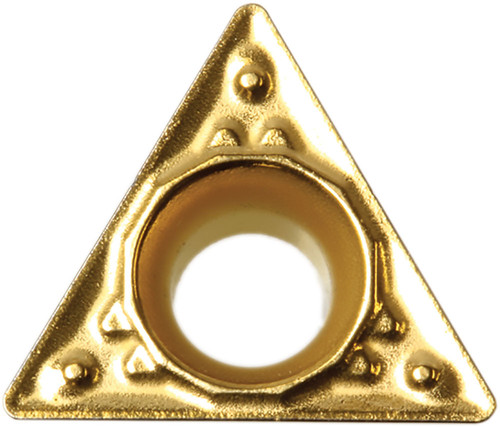

Kyocera Turning Insert TPMT321HQ CCX: TMJ40083

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMJ40083
$26.50

Kyocera Turning Insert TPMT321HQ CCX, manufacturer part number TMJ40083.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8864281; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 321; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT321HQCCX; Chip Breaker Type: HQ; ISO Designation: TPMT160304HQ; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CCX; Workpiece Material: Steel, Cast Iron; Insert Shape: Triangle; Coating Process: CVD.

Material: Cermet. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMT321HQCCX
Insert Style
TPMT
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
321
Old Material Number
8864281
Insert Grade
CCX
Workpiece Material
Steel, Cast Iron
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
HQ
ISO Designation
TPMT160304HQ
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CCX_CVD_Cermet.pdf
