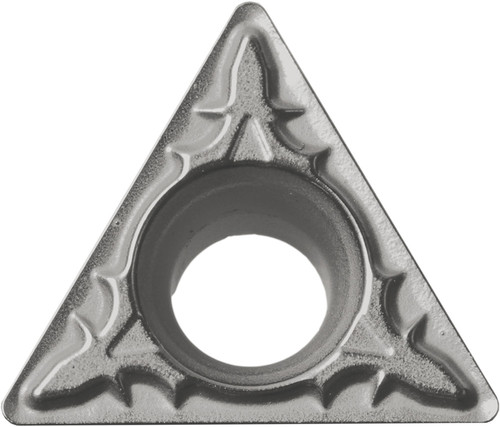

Kyocera TPMT 321XP TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR07170
$12.47
Kyocera TPMT 321XP TN620 Grade Uncoated Cermet, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TPMT
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
321
Old Material Number
8842912
ANSI Part Number
TPMT321XPTN620
ISO Part Number
TPMT160304XP
Rake
Positive
Material Group / Grade
TN620
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
3.18
Chipbreaker
XP
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera TPMT 321XP TN620 Grade Uncoated Cermet, Indexable Turning Insert
$12.47
