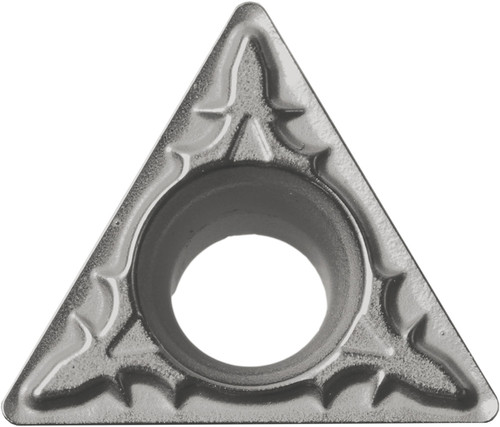

Kyocera TPMT 322XP TN610 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS07171
$11.88
Kyocera TPMT 322XP TN610 Grade Uncoated Cermet, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TPMT
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
322
Old Material Number
8847085
ANSI Part Number
TPMT322XPTN610
ISO Part Number
TPMT160308XP
Rake
Positive
Material Group / Grade
TN610
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Thickness (Metric)
3.18
Chipbreaker
XP
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
