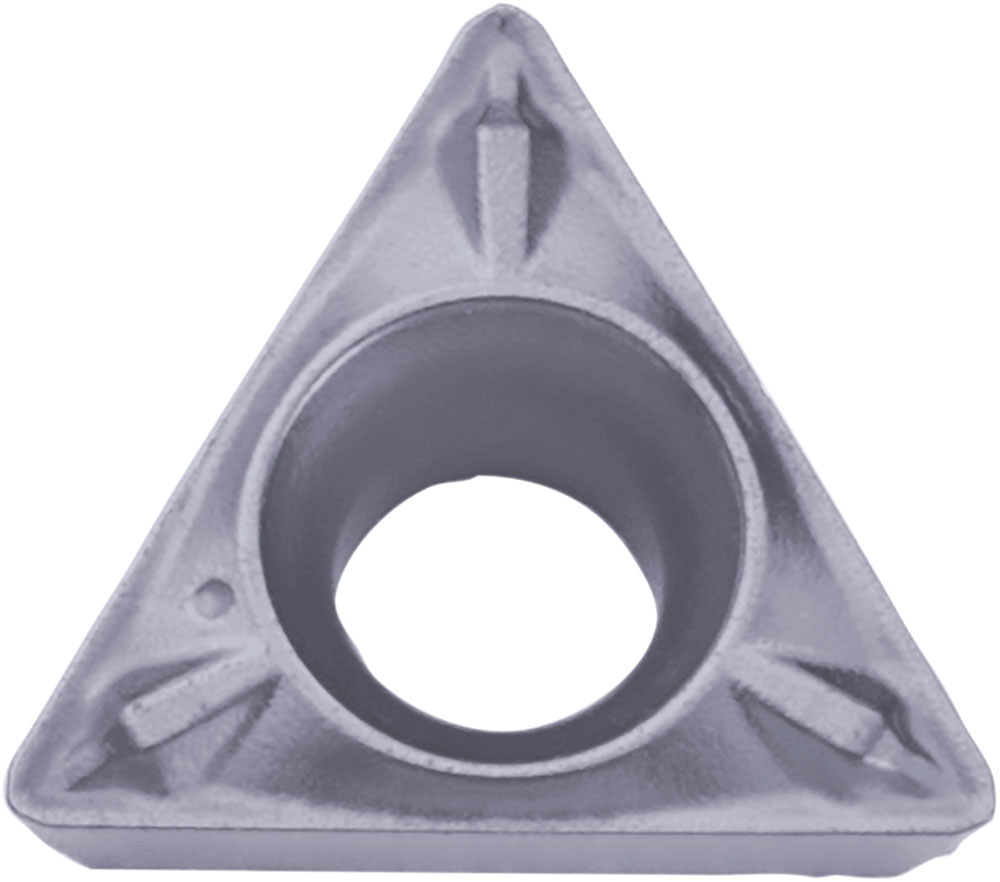

Kyocera Turning Insert TPMX181505WP PV720: TLD07280

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD07280
$25.34

Kyocera ISOI turning insert for steel, 7/32 in (5.56 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLD07280.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN
IC Size (Metric)
5.56
Included Angle
60
Corner Radius (Decimal)
0.0080
Insert Style
TPMX
Insert Thickness (Fractional)
3/32
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
181505
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Rake
Positive
IC Size (Fractional)
7/32
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Insert Grade
PV720
Chip Breaker Type
WP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
TPMX090202WP
Workpiece Material
Steel
ANSI Designation
TPMX181505WPPV720
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/WP_Chipbreaker.pdf
Coating Process
PVD
