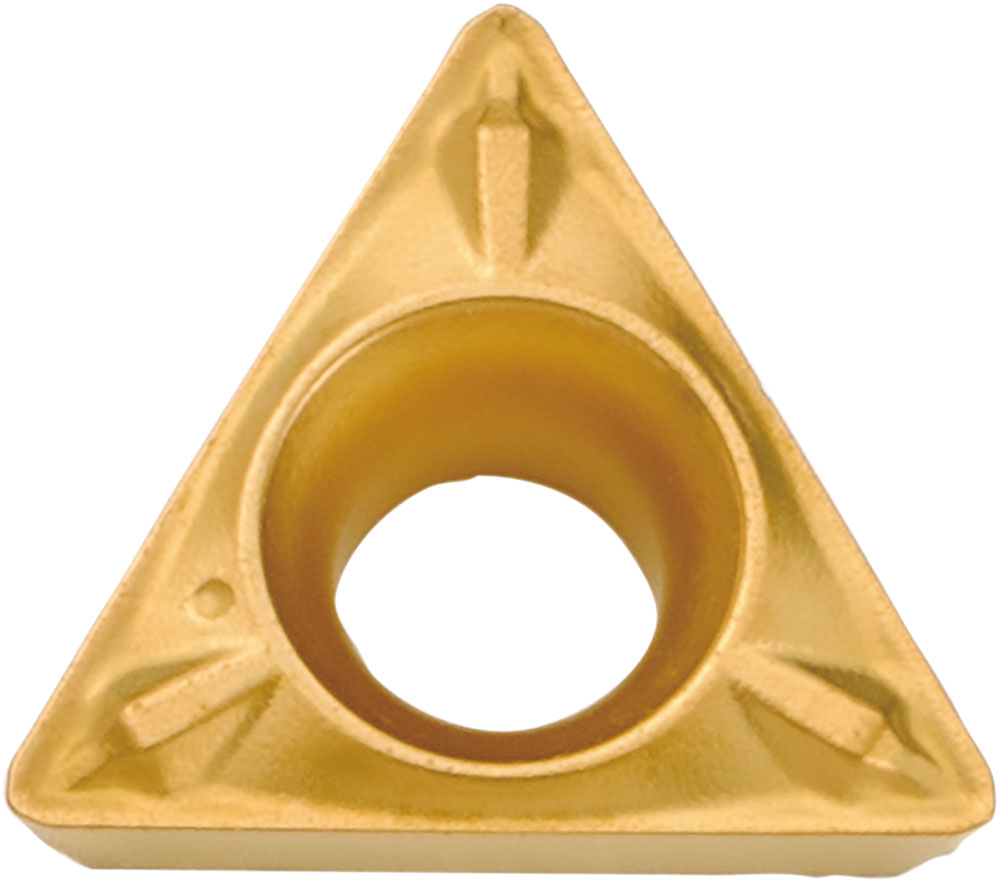

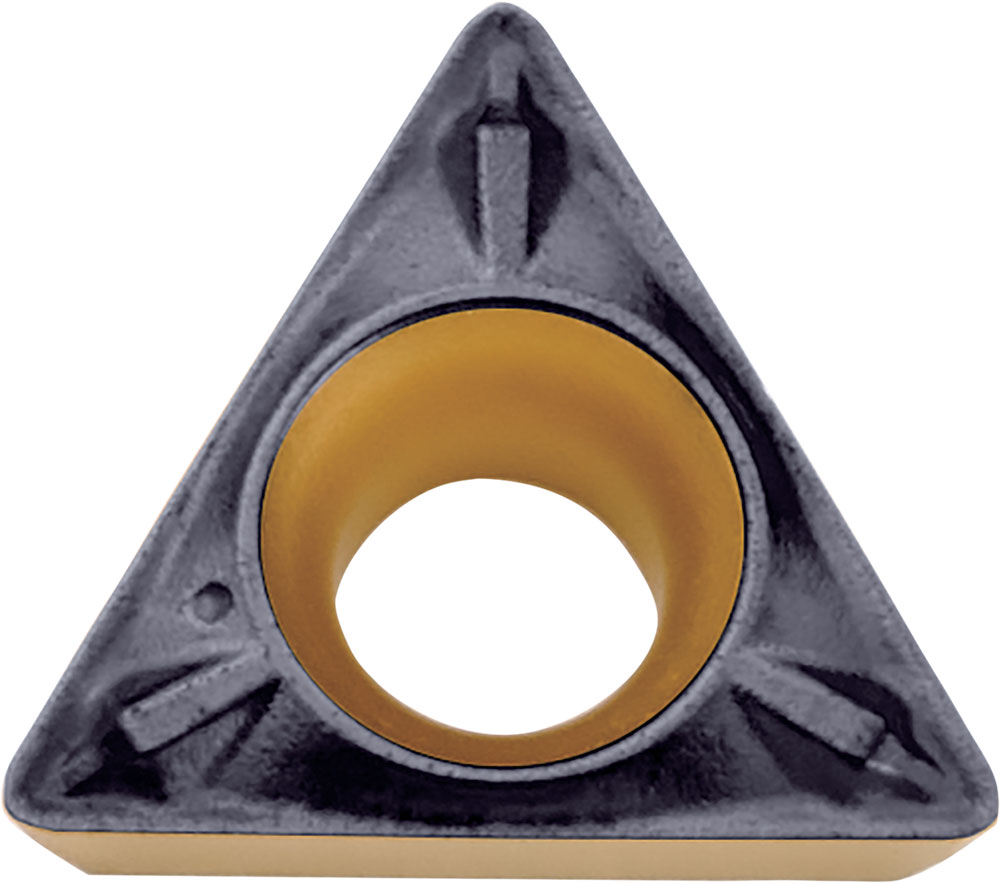

Kyocera TPMX 18152WP CA025P Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMH00462
$18.89
Kyocera TPMX 18152WP CA025P Grade CVD Carbide, 60 Degree Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
60 degrees
Thickness
3/32 Inch
Style
TPMX
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
18152
Old Material Number
8861839
ANSI Part Number
TPMX18152WPCA025P
ISO Part Number
TPMX090208WP
Rake
Positive
Material Group / Grade
CA025P
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Thickness (Metric)
2.38
Chipbreaker
WP
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
5.56
Inscribed Circle
7/32 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/WP_Chipbreaker.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA025P_CVD_Coated_Carbide_for_Steel.pdf
Kyocera TPMX 18152WP CA025P Grade CVD Carbide, Indexable Turning Insert
$18.89
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
