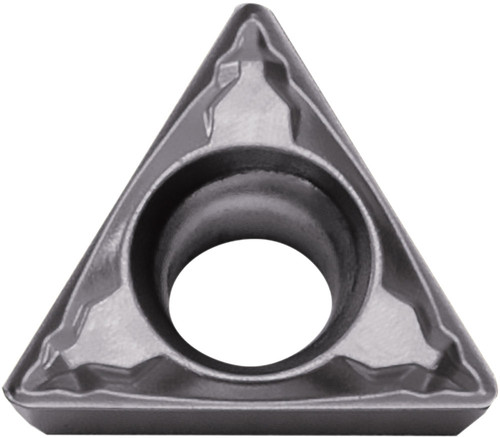

Kyocera Turning Insert TPMX221LWP PR1725: TLM00324

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00324
$17.78

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing cutting range, screw or clamp insert holding, left hand. Carbide, MEGACOAT NANO PLUS (PVD) coating. Manufacturer part number TLM00324.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TPMX221LWPPR1725
Insert Style
TPMX
Insert Thickness (Metric)
3.18
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
221
Secondary Workpiece Material
Stainless Steel
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
PR1725
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TPMX110304L-WP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
PVD
Chip Breaker Type
WP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/WP_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
