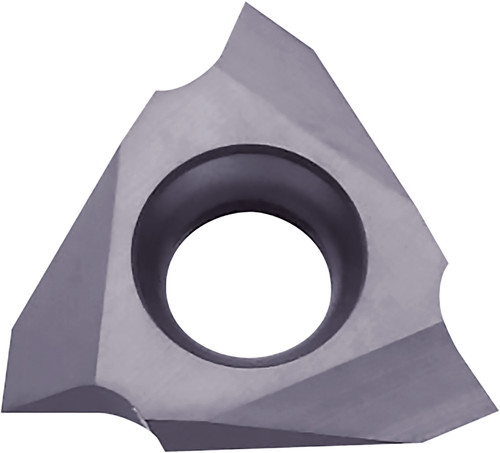

Kyocera TT 32L6000 PR1115 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJY19489
$68.13
Kyocera TT 32L6000 PR1115 Grade PVD Carbide, External & Internal, 60 Degree Partial Profile, Left-Hand Threading Insert for Metric (M), Unified (UN) Threads

Specifications

Series
KTT
Unit of Measure
Metric
Cutting Direction
Left
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(M) Stainless Steel
Grade
PR1115
Thickness
3.18 mm
Style
TT
Application
External Threading, Internal Threading
Thread Standard
Metric (M)|Unified (UN)
Insert Holding Method
Screw
Thread Type
External & Internal
Size
32
Old Material Number
8829862
ANSI Part Number
TT32L6000PR1115
ISO Part Number
TT32L6000
Number of Cutting Edges
3
Thickness (Fractional)
1/8
Usage Classification
Continuous
Inscribed Circle (Fractional)
3/8
Inscribed Circle Diameter mm
9.53 mm
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
UN: 56-10, UN: 48-10
Thread Pitch (mm)
M: 0.5-2.5
Pack quantity
5
