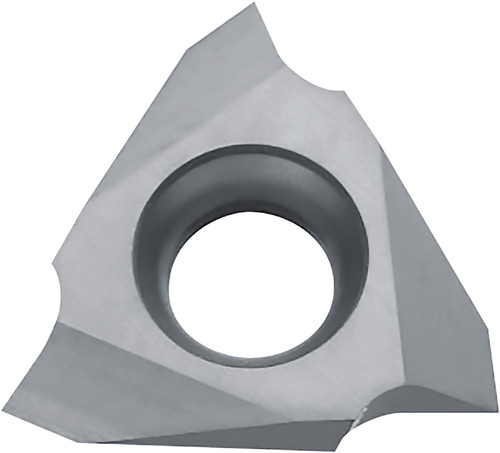

Kyocera TT 32R6001 KW10 Grade Uncoated Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE02800
$55.76
Kyocera TT 32R6001 KW10 Grade Uncoated Carbide, External & Internal, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads

Specifications

Series
KTT
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Cast Iron|(N) Non-Ferrous Materials
Grade
KW10
Thickness
3.18 mm
Style
TT
Application
External Threading, Internal Threading
Thread Standard
Metric (M)|Unified (UN)
Insert Holding Method
Screw
Thread Type
External & Internal
Size
32
Old Material Number
8805895
ANSI Part Number
TT32R6001KW10
ISO Part Number
TT32R6001
Corner Radius (Metric)
0.10
Number of Cutting Edges
3
Corner Radius (Decimal)
0.004
Thickness (Fractional)
1/8
Usage Classification
Continuous
Inscribed Circle (Fractional)
3/8
Inscribed Circle Diameter mm
9.53 mm
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
UN: 24-10, UN: 16-10
Thread Pitch (mm)
M: 1.0-2.5
Pack quantity
10
Kyocera TT 32R6001 KW10 Grade Uncoated Carbide, Indexable Threading Insert
$55.76
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
