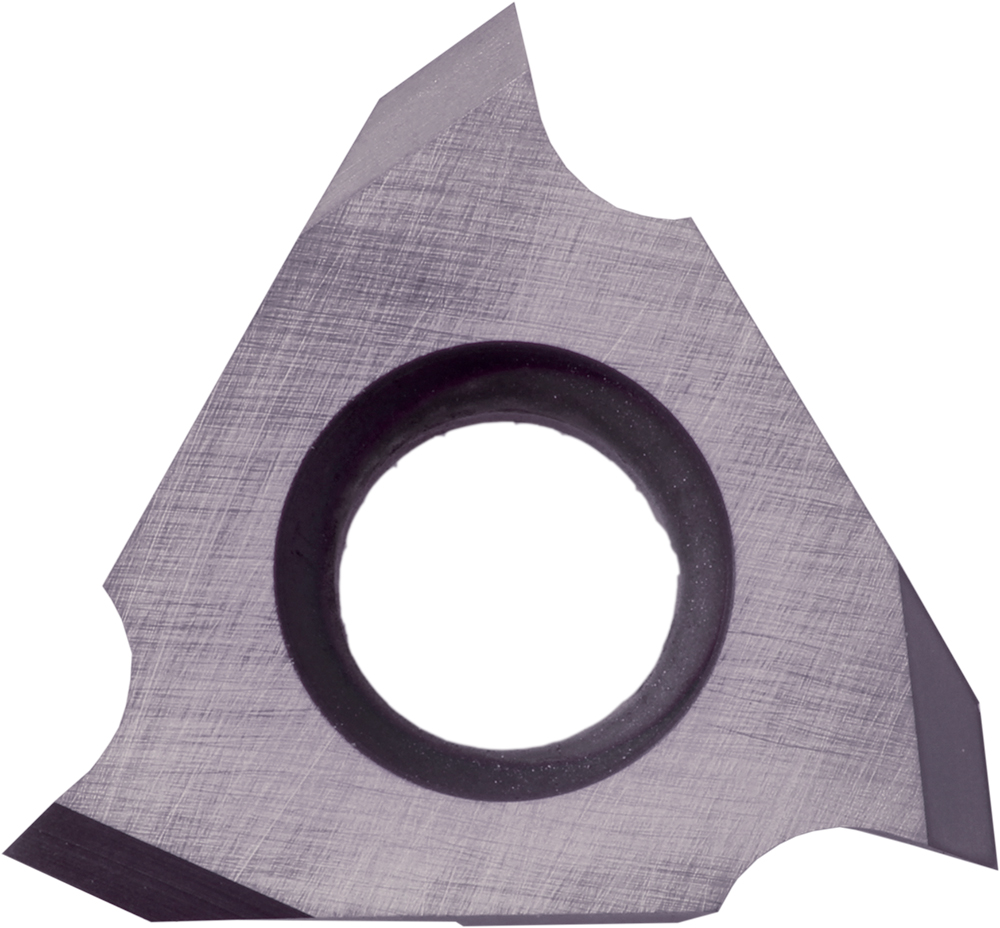

Kyocera TTX 32R60005S PR1115 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJY19616
$68.13
Kyocera TTX 32R60005S PR1115 Grade PVD Carbide, External, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads

Specifications

Series
KTTX
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(M) Stainless Steel
Grade
PR1115
Thickness
3.18 mm
Style
TTX
Application
External Threading
Thread Standard
Metric (M)|Unified (UN)
Insert Holding Method
Screw
Thread Type
External
Size
32
Old Material Number
8829873
ANSI Part Number
TTX32R60005SPR1115
ISO Part Number
TTX32R60005S
Corner Radius (Metric)
0.05
Number of Cutting Edges
3
Corner Radius (Decimal)
0.002
Thickness (Fractional)
1/8
Usage Classification
Continuous
Inscribed Circle (Fractional)
3/8
Inscribed Circle Diameter mm
9.53 mm
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
UN: 48
Thread Pitch (mm)
M: 0.5
Pack quantity
5
Kyocera TTX 32R60005S PR1115 Grade PVD Carbide, Indexable Threading Insert
$68.13
