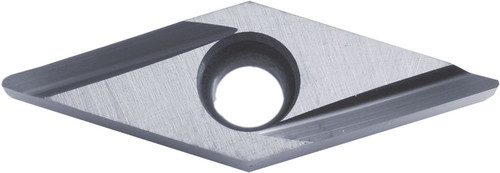

Kyocera VBET 2202MLY PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00362
$32.26
Kyocera VBET 2202MLY PR1725 Grade PVD Carbide, 5 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
35 degrees
Thickness
1/8 Inch
Style
VBET
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2202
Old Material Number
8863611
ANSI Part Number
VBET2202MLYPR1725
ISO Part Number
VBET110301ML-Y
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
3.18
Chipbreaker
Y
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
