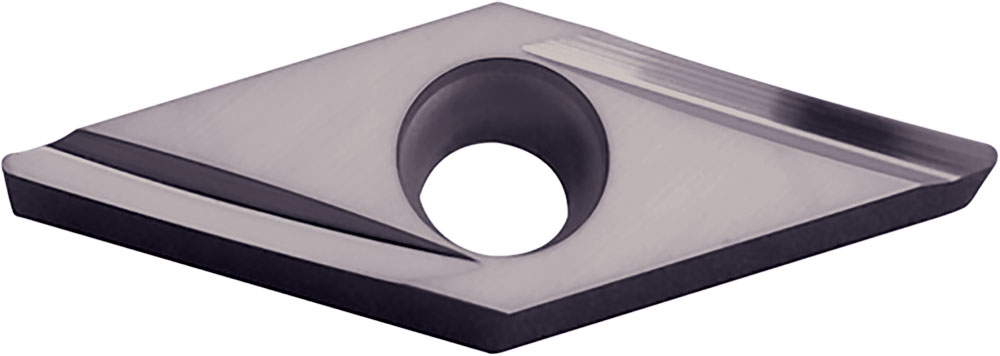

Kyocera Turning Insert VBGT22013MRY PR1705: TLN40192

Kyocera Turning Insert VBGT22013MRY PR1705, manufacturer part number TLN40192.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 0.0020 in (0.05 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8866442; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 22013; Hand Direction: Right; Insert Style: VBGT; Insert Shape: 35 Degree Diamond; ANSI Designation: VBGT22013MRYPR1705; Chip Breaker Type: Y; ISO Designation: VBGT1103005MR-Y; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: PR1705; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.
