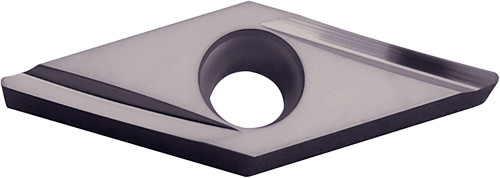

Kyocera Turning Insert VBGT2202MRY PR1225: TKE07463

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE07463
$32.26

Kyocera Turning Insert VBGT2202MRY PR1225, manufacturer part number TKE07463.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8831988; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 2202; Hand Direction: Right; Insert Style: VBGT; Insert Shape: 35 Degree Diamond; ANSI Designation: VBGT2202MRYPR1225; Chip Breaker Type: Y; ISO Designation: VBGT110301MR-Y; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: PR1225; Workpiece Material: Stainless Steel, Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT
IC Size (Metric)
6.35
Included Angle
35
Corner Radius (Decimal)
0.0040
Insert Style
VBGT
Insert Thickness (Fractional)
1/8
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
2202
Old Material Number
8831988
Insert Thickness (Metric)
3.18
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Insert Grade
PR1225
Chip Breaker Type
Y
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
ISO Designation
VBGT110301MR-Y
Workpiece Material
Stainless Steel, Steel
ANSI Designation
VBGT2202MRYPR1225
Pack quantity
10
Coating Process
PVD
