Kyocera Turning Insert VBGT2202RF PV720: TLD07453

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD07453
$30.05

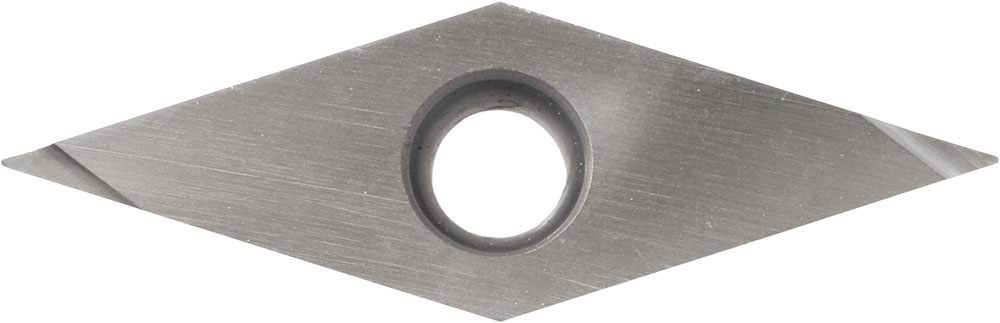

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLD07453.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
TiCN
IC Size (Metric)
6.35
Included Angle
35
Corner Radius (Decimal)
0.0040
Insert Style
VBGT
Insert Thickness (Fractional)
1/8
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
2202
Insert Thickness (Metric)
3.18
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Insert Grade
PV720
Chip Breaker Type
F
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
VBGT110301R-F
Workpiece Material
Steel
ANSI Designation
VBGT2202RFPV720
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Coating Process
PVD
