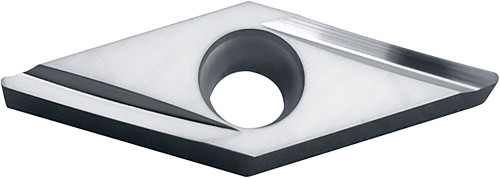

Kyocera Turning Insert VBGT221MRY PR1705: TLN40197

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLN40197
$32.26

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, right hand. Carbide, MEGACOAT NANO PLUS (PVD) coating. Manufacturer part number TLN40197.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VBGT221MRYPR1705
Insert Style
VBGT
Insert Thickness (Metric)
3.18
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
221
Secondary Workpiece Material
Stainless Steel
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Insert Grade
PR1705
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
VBGT110304MR-Y
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/4
Coating Process
PVD
Chip Breaker Type
Y
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
Kyocera Turning Insert VBGT221MRY PR1705: TLN40197
$32.26
