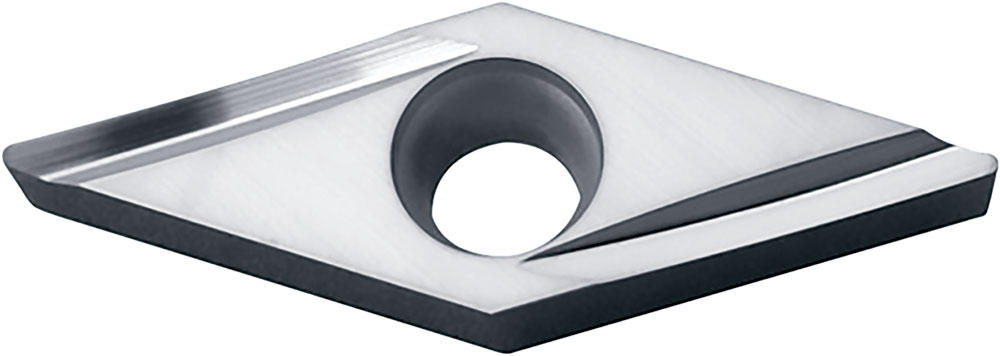

Kyocera VBGT 3305LY KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00577
$44.92
Kyocera VBGT 3305LY KW10 Grade Uncoated Carbide, 5 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VBGT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3305
Old Material Number
8815805
ANSI Part Number
VBGT3305LYKW10
ISO Part Number
VBGT160402L-Y
Rake
Positive
Material Group / Grade
KW10
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
4.76
Chipbreaker
Y
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
Kyocera VBGT 3305LY KW10 Grade Uncoated Carbide, Indexable Turning Insert
$44.92
