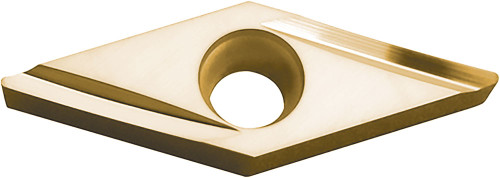

Kyocera VBGT 3305RY PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00462
$41.82
Kyocera VBGT 3305RY PV730 Grade PVD Cermet, 5 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Heavy Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
35 degrees
Thickness
3/16 Inch
Style
VBGT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3305
Old Material Number
8866222
ANSI Part Number
VBGT3305RYPV730
ISO Part Number
VBGT160402R-Y
Rake
Positive
Material Group / Grade
PV730
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
4.76
Chipbreaker
Y
Cutting Range
Finishing-Medium
Usage Classification
Heavy Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
