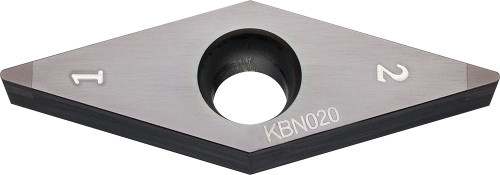

Kyocera Turning Insert VBGW221S00435MET KBN020: TFC00112

Kyocera Turning Insert VBGW221S00435MET KBN020, manufacturer part number TFC00112.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 221; Hand Direction: Neutral; Insert Style: VBGW; Insert Shape: 35 Degree Diamond; ANSI Designation: VBGW221S00435METKBN020; ISO Designation: VBGW110304S01035MET; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: KBN020; Workpiece Material: Hardened Steel; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT TOUGH. Series: ISOI. Unit of measure: Inch.
