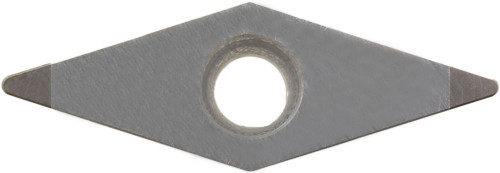

Kyocera Turning Insert VBGW221T00315ME KBN25M: TBZ05472

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ05472
$103.30

Kyocera ISOI turning insert for hardened steel, 1/4 in (6.35 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT (PVD) coating. Manufacturer part number TBZ05472.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VBGW221T00315MEKBN25M
Insert Style
VBGW
Insert Thickness (Metric)
3.18
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
221
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Insert Grade
KBN25M
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Hardened Steel
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
PVD
ISO Designation
VBGW110304T00815ME
