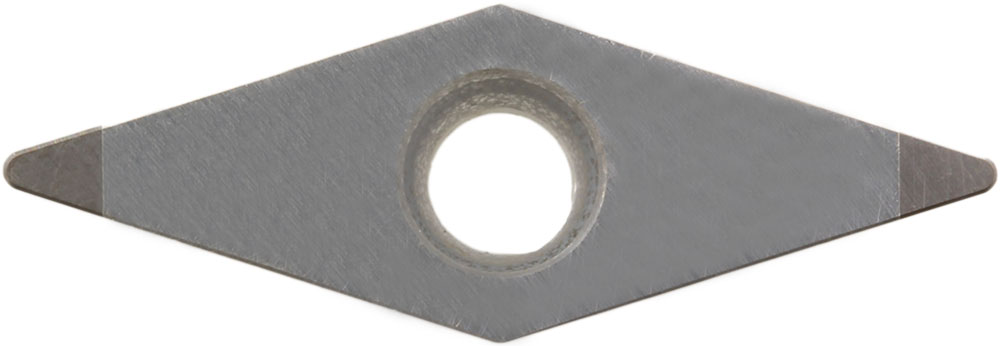

Kyocera Turning Insert VBGW331T00315ME KBN525: TBW05477

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBW05477
$97.92

Kyocera ISOI turning insert for hardened steel, 3/8 in (9.525 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. CBN, uncoated. Manufacturer part number TBW05477.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
Uncoated
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VBGW331T00315MEKBN525
Insert Style
VBGW
Insert Grade
KBN525
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
331
Insert Thickness (Fractional)
3/16
Workpiece Material
Hardened Steel
Rake
Positive
Insert Thickness (Metric)
4.76
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
VBGW160404T00815ME
IC Size (Fractional)
3/8
