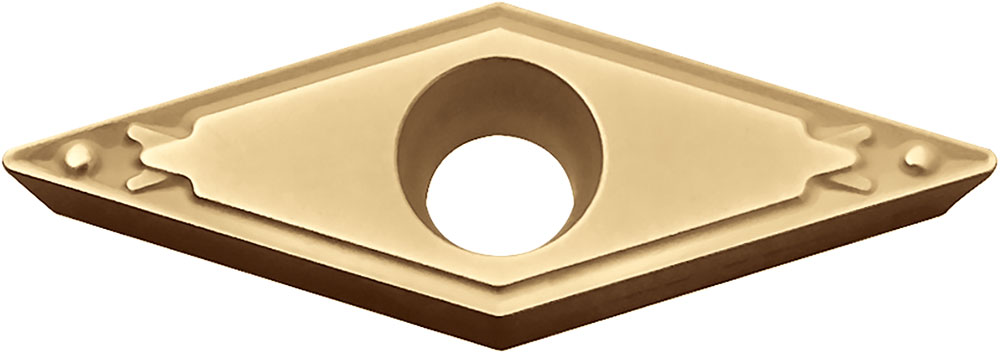

Kyocera VBMT 2205PP PV720 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD07590
$33.22
Kyocera VBMT 2205PP PV720 Grade PVD Cermet, 5 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
35 degrees
Thickness
1/8 Inch
Style
VBMT
Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2205
Old Material Number
8844004
ANSI Part Number
VBMT2205PPPV720
ISO Part Number
VBMT110302PP
Rake
Positive
Material Group / Grade
PV720
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.18
Chipbreaker
PP
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
35 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
Kyocera VBMT 2205PP PV720 Grade PVD Cermet, Indexable Turning Insert
$33.22
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
