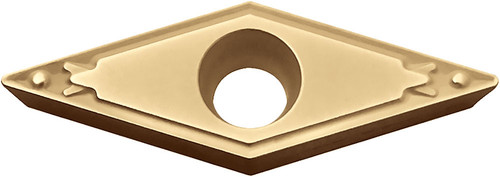

Kyocera Turning Insert VBMT221HQ CA525: TAC07410

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC07410
$31.94

Kyocera Turning Insert VBMT221HQ CA525, manufacturer part number TAC07410.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8839764; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 221; Hand Direction: Neutral; Insert Style: VBMT; Insert Shape: 35 Degree Diamond; ANSI Designation: VBMT221HQCA525; Chip Breaker Type: HQ; ISO Designation: VBMT110304HQ; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: CA525; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VBMT221HQCA525
Insert Style
VBMT
Insert Thickness (Metric)
3.18
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
221
Old Material Number
8839764
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Insert Grade
CA525
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
VBMT110304HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
