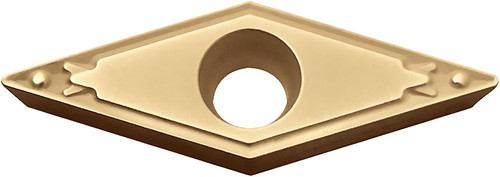

Kyocera Turning Insert VBMT221HQ PV730: TLP00468
SKU: KYP-TLP00468
Kyocera Turning Insert VBMT221HQ CA6525, manufacturer part number TJV07410.
Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8824355; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 221; Hand Direction: Neutral; Insert Style: VBMT; Insert Shape: 35 Degree Diamond; ANSI Designation: VBMT221HQCA6525; Chip Breaker Type: HQ; ISO Designation: VBMT110304HQ; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: CA6525; Workpiece Material: Stainless Steel, High-Temp Alloy; Coating Process: CVD.
Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
