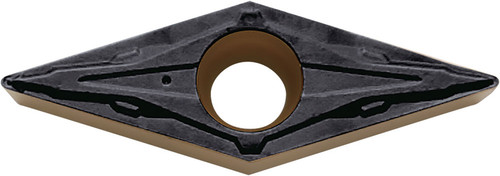

Kyocera Turning Insert VBMT221PP CA115P: TML00436

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00436
$31.03

Kyocera Turning Insert VBMT221PP CA115P, manufacturer part number TML00436.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 221; Hand Direction: Neutral; Insert Style: VBMT; Insert Shape: 35 Degree Diamond; ANSI Designation: VBMT221PPCA115P; Chip Breaker Type: PP; ISO Designation: VBMT110304PP; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: CA115P; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
35
ANSI Designation
VBMT221PPCA115P
Insert Style
VBMT
Insert Thickness (Metric)
3.18
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
221
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Insert Grade
CA115P
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
VBMT110304PP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
PP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
