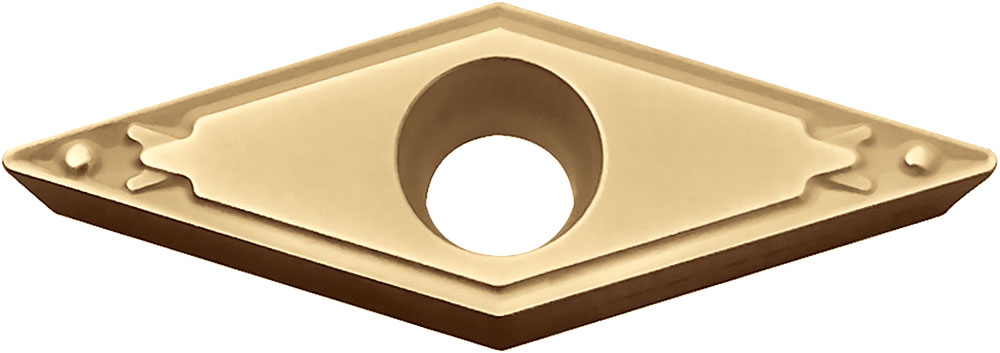

Kyocera Turning Insert VBMT222HQ CA115P: TML00452

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00452
$31.03

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 35 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TML00452.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/32
Included Angle
35
ANSI Designation
VBMT222HQCA115P
Insert Style
VBMT
Insert Thickness (Metric)
3.18
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
222
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Insert Grade
CA115P
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
VBMT110308HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
