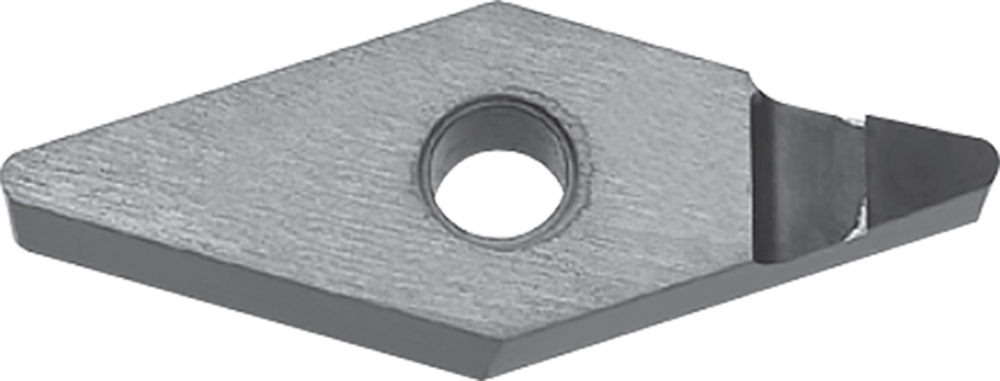

Kyocera Turning Insert VBMT222NE KPD001: TBR05608

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR05608
$249.32

Kyocera Turning Insert VBMT222NE KPD001, manufacturer part number TBR05608.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8831027; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 222; Hand Direction: Neutral; Insert Style: VBMT; Insert Shape: 35 Degree Diamond; ANSI Designation: VBMT222NEKPD001; ISO Designation: VBMT110308NE; Included Angle: 35 degrees; Machining Operations: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting; Insert Grade: KPD001; Workpiece Material: Non-Ferrous, High-Temp Alloy.

Material: PCD. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
IC Size (Metric)
6.35
Corner Radius (Fractional)
1/32
Included Angle
35
ANSI Designation
VBMT222NEKPD001
Insert Style
VBMT
Insert Thickness (Metric)
3.18
Insert Shape
35 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
222
Old Material Number
8831027
Machining Operations
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Insert Grade
KPD001
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.80
Number of Cutting Edges
1
Workpiece Material
Non-Ferrous, High-Temp Alloy
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/4
ISO Designation
VBMT110308NE
